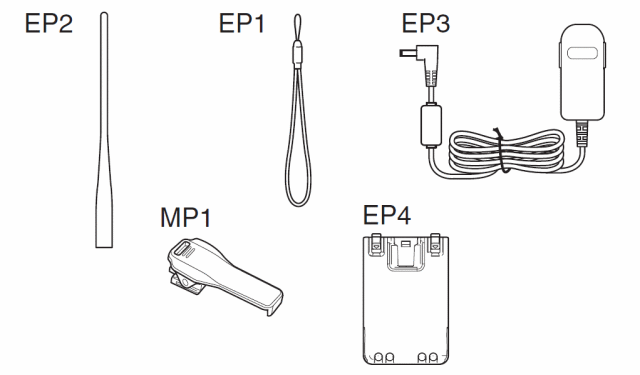

ACCESSORY
| 部品番号 | 部品名 | 員数 | 備考 | |
|---|---|---|---|---|
| EP1 | 6910018620 | BLACK HANDY STRAP | 1 | ハンドストラップ |
| EP2 | 3310002150 | FA-S270C | 1 | |
| EP3 | BC-167S | 1 | 普及型バッテリーチャージャー | |
| EP4 | BP-271 | 1 | リチウムイオンバッテリーパック | |
| MP1 | MB-127 | 1 | ベルトクリッップ |

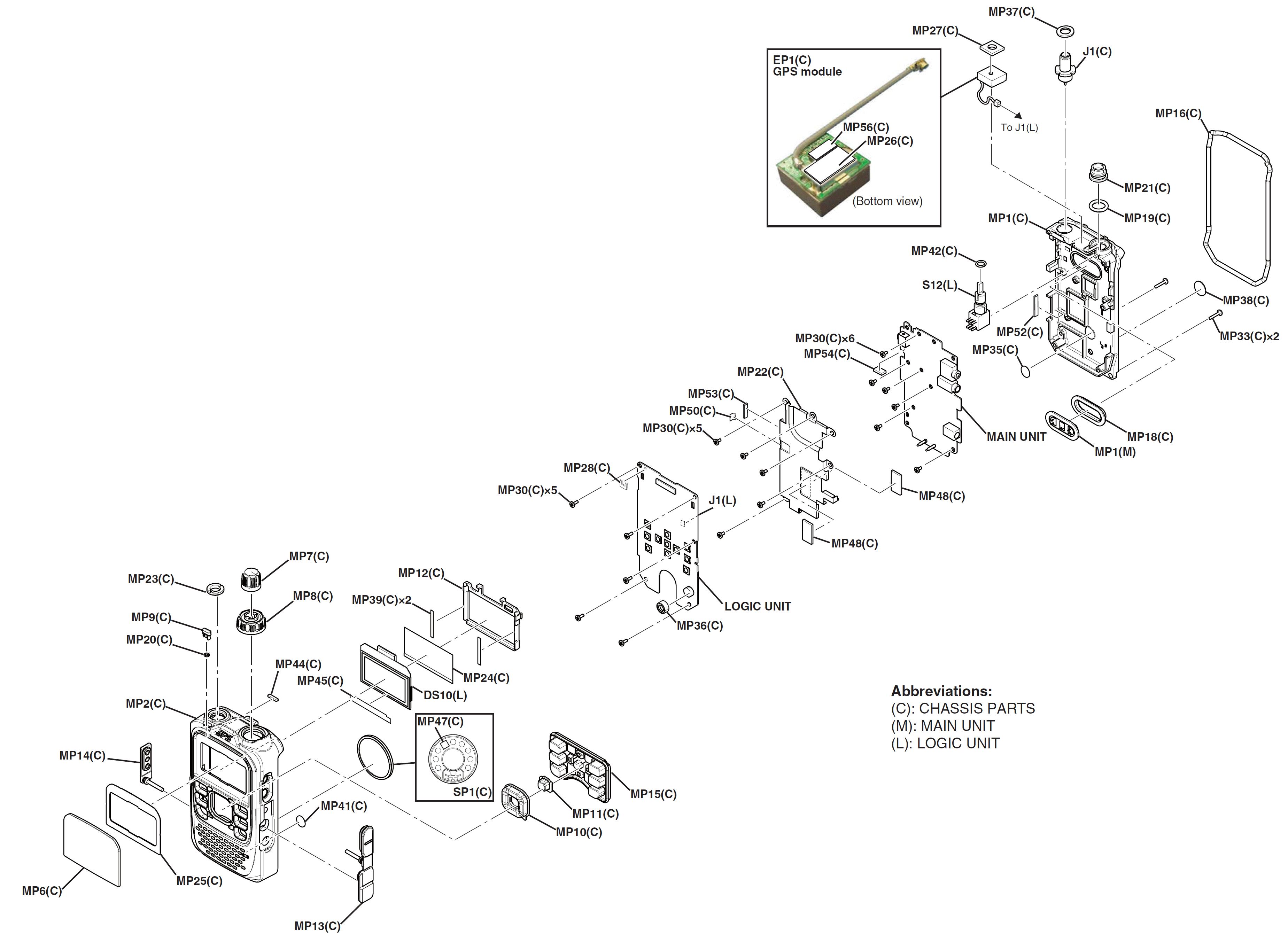

CHASSIS
| 部品番号 | 部品名 | 員数 | 備考 | |
|---|---|---|---|---|
| J1 | 6910015630 | 2682 ANT CONNECTOR | 1 | |
| SP1 | 2510001650 | K028NA510-13 | 1 | |
| EP1 | 3310004270 | AGA121204-S0-A6 | 1 | |
| MP1 | 8010022180 | 3322 CHASSIS 0 | 1 | |
| MP6 | 8310078570 | 3322 WINDOW PLATE | 1 | |
| MP2 | 8210027110 | 3322 FRONT PANEL ASSEMBLY | 1 | |
| MP7 | 8610014360 | KNOB N-397 | 1 | |
| MP8 | 8610014370 | KNOB N-398 | 1 | |
| MP9 | 8930083070 | 3322 LENS | 1 | |
| MP10 | 8930083080 | 3322 C-BUTTON | 1 | |
| MP11 | 8930083090 | 3322 D-BUTTON | 1 | |
| MP12 | 8210027090 | 3322 REFLECTOR | 1 | |
| MP13 | 8930083100 | 3322 JACK CAP (TOT) | 1 | |
| MP14 | 8930083110 | 3322 SD CAP (TOT) | 1 | |
| MP15 | 8930083160 | 3322 KEYBOARD | 1 | |
| MP16 | 8930083120 | 3322 MAIN SEAL (TOT) | 1 | |
| MP18 | 8930083140 | 3322 CONTACT RUBBER (TOT) | 1 | |
| MP19 | 8930083670 | O-RING (CL) (TOT) | 1 | |
| MP20 | 8930083680 | O-RING (CM) (TOT) | 1 | |
| MP21 | 8830003670 | VR NUT (AC) | 1 | |
| MP22 | 8510020280 | 3322 SHIELD PLATE | 1 | |
| MP23 | 8830003660 | STEP NUT (M) | 1 | |
| MP24 | 8930083420 | 3322 WHITE SHEET | 1 | |
| MP25 | 8930083150 | 3322 WINDOW SHEET | 1 | |
| MP26 | 8930083700 | DOUBLE SIDE TAPE (BM) | 1 | |
| MP27 | 8930083690 | 3322 GPS SPONGE | 1 | |
| MP28 | 8930083810 | SPONGE (LJ) | 1 | |
| MP30 | 8810011050 | BT O M2X3 NI-ZC3 | 16 | |
| MP33 | 8810010850 | PHBT B0 M2X8 SUS SSBC | 2 | |
| MP35 | 8930068980 | 2905 VENT SHEET | 1 | |
| MP36 | 8930069350 | 2905 MIC SEAL (TOP)S | 1 | |
| MP37 | 8930058550 | O-RING (AS) | 1 | |
| MP38 | 8930055920 | GQ | 1 | |
| MP39 | 8950004430 | DOUBLE SIDE TAPE (O) | 2 | |
| MP41 | 8930076440 | 3115 VENT SHEET | 1 | |
| MP42 | 8930083880 | O-RING (CK) | 1 | |
| MP43 | 8930058500 | HB | 1 | |
| MP44 | 8930083900 | INSULATION SHEET (MW) | 1 | |
| MP45 | 8930083910 | 3322 LCD SHEET | 1 | |
| MP47 | 8930084720 | SPONGE (LP) | 1 | |
| MP48 | 8930084600 | SPONGE (LL) | 2 | |
| MP49 | 8930070590 | SHIELD TAPE (S) | 1 | |
| MP50 | 8930058500 | HB | 1 | |
| MP52 | 8930085100 | SHIELD SPONGE (CW) | 1 | |
| MP53 | 8930085100 | SHIELD SPONGE (CW) | 1 | |
| MP54 | 8930085110 | SHIELD SPONGE (CX) | 1 | |
| MP55 | 8930085120 | SHIELD TAPE (Y) | 1 | |
| MP56 | 8930070590 | SHIELD TAPE (S) | 1 |
