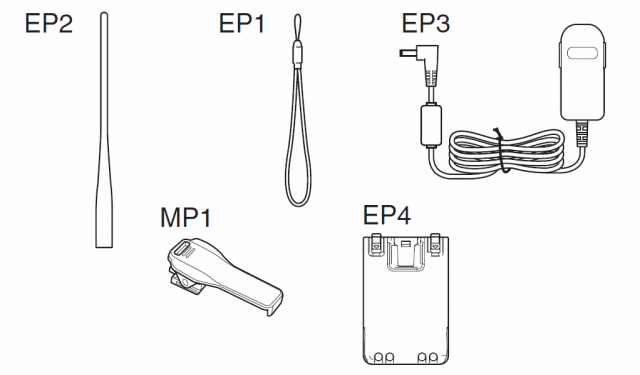

ACCESSORY
| 部品番号 | 部品名 | 員数 | 備考 | |
|---|---|---|---|---|
| EP1 | 6910018620 | BLACK HANDY STRAP | 1 | ハンドストラップ |
| EP2 | 3310002150 | FA-S270C | 1 | |
| EP3 | BC-167S | 1 | 普及型バッテリーチャージャー | |
| EP4 | BP-271 | 1 | リチウムイオンバッテリーパック | |
| MP1 | MB-127 | 1 | ベルトクリッップ |

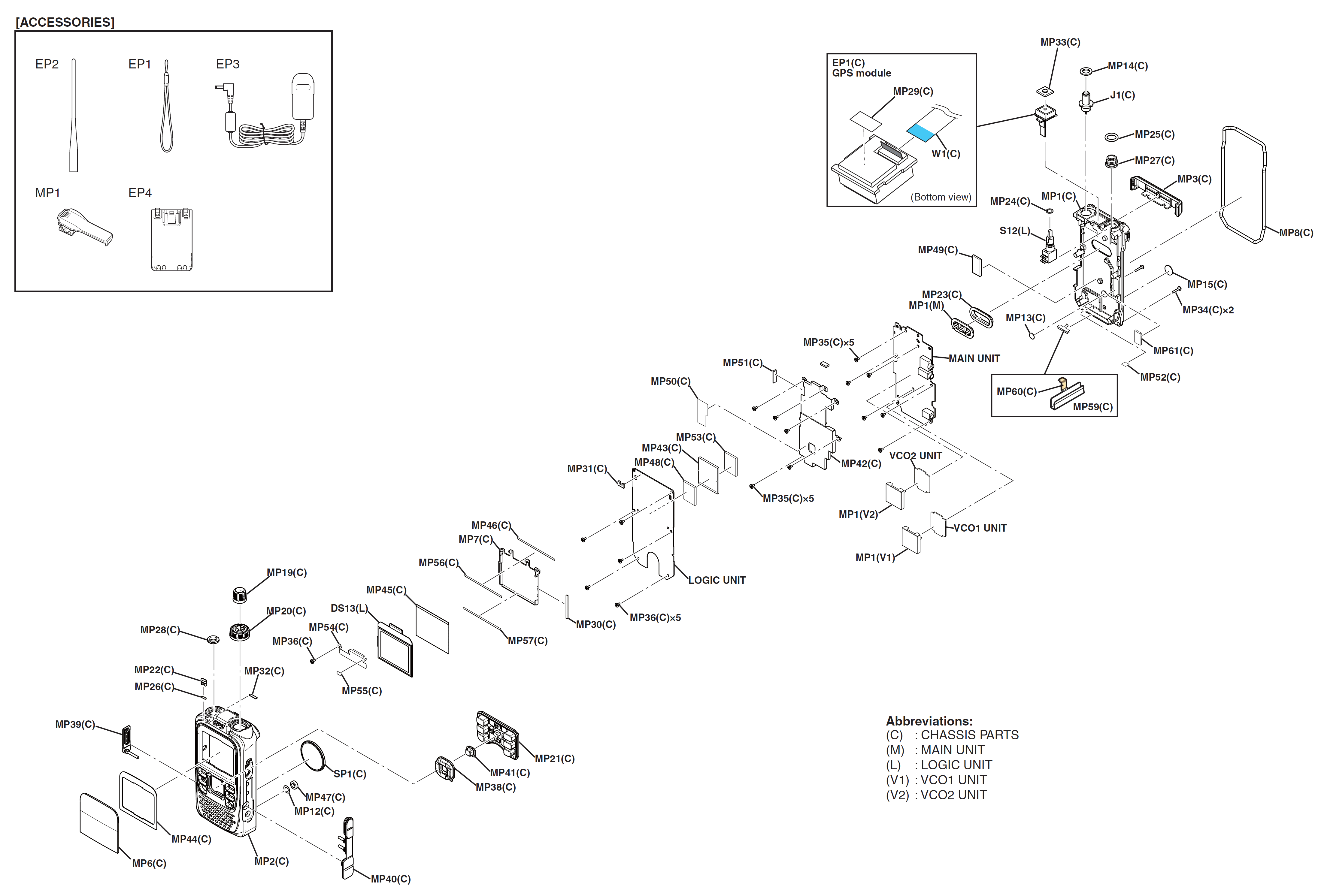

CHASSIS
"
| 部品番号 | 部品名 | 員数 | 備考 | |
|---|---|---|---|---|
| J1 | 6910015630 | 2682 ANT CONNECTOR | 1 | |
| SP1 | 2510001650 | K028NA510-13 | 1 | |
| W1 | 8900014801 | OPC-1573-1 (P0.5N10L50) | 1 | |
| EP1 | 6910023940 | PGS4ER-CX-512 | 1 | |
| MP1 | 8010022510 | 3390 CHASSIS | 1 | |
| MP2 | 8210028200 | 3390 FRONT PANEL ASSEMBLY | 1 | |
| MP3 | 8210028020 | 3390 REAR PANEL | 1 | |
| MP6 | 8310080730 | 3390 WINDOW PLATE | 1 | |
| MP7 | 8210028040 | 3390 REFLECTOR | 1 | |
| MP8 | 8930085930 | 3390 MAIN SEAL | 1 | |
| MP12 | 8930076440 | 3115 VENT SHEET | 1 | |
| MP13 | 8930030920 | 1301 SHEET | 1 | |
| MP14 | 8930058550 | O-RING (AS) | 1 | |
| MP15 | 8930084870 | 3384 REAR SHEET | 1 | |
| MP19 | 8610014360 | KNOB N-397 | 1 | |
| MP20 | 8610014370 | KNOB N-398 | 1 | |
| MP21 | 8930083090 | 3322 D-BUTTON | 1 | |
| MP22 | 8930083070 | 3322 LENS | 1 | |
| MP23 | 8930083140 | 3322 CONTACT RUBBER (TOT) | 1 | |
| MP24 | 8930083881 | O-RING (CK)-1 (TOT) | 1 | |
| MP25 | 8930083670 | O-RING (CL) (TOT) | 1 | |
| MP26 | 8930083680 | O-RING (CM) (TOT) | 1 | |
| MP27 | 8830003670 | VR NUT (AC) | 1 | |
| MP28 | 8830003660 | STEP NUT (M) | 1 | |
| MP29 | 8930083700 | DOUBLE SIDE TAPE (BM) | 1 | |
| MP30 | 8930086950 | SPONGE (MD) | 1 | |
| MP31 | 8930083810 | SPONGE (LJ) | 1 | |
| MP32 | 8930083900 | INSULATION SHEET (MW) | 1 | |
| MP33 | 8930083690 | 3322 GPS SPONGE | 1 | |
| MP34 | 8810010850 | PHBT B0 M2X8 SUS SSBC | 2 | |
| MP35 | 8810011050 | BT M2X3 NI-ZC3 | 11 | |
| MP36 | 8810011050 | BT M2X3 NI-ZC3 | 6 | |
| MP38 | 8930086021 | 3322 C-BUTTON (A)-1 | 1 | |
| MP39 | 8930086030 | 3390 SD CAP (TOT) | 1 | |
| MP40 | 8930086040 | 3390 JACK CAP (TOT) | 1 | |
| MP41 | 8930086050 | 3322 KEYBOARD (A) | 1 | |
| MP42 | 8510020580 | 3390 SHIELD PLATE | 1 | |
| MP43 | 8510020600 | 3390 DSP CASE | 1 | |
| MP44 | 8930086060 | 3390 WINDOW SHEET | 1 | |
| MP45 | 8930086070 | 3390 WHITE SHEET | 1 | |
| MP46 | 8930086090 | DOUBLE SIDE TAPE (BP) | 1 | |
| MP47 | 8930086080 | 3390 MIC SPONGE | 1 | |
| MP48 | 8930087760 | FERRITE SHEET (AJ) | 1 | |
| MP49 | 8930087770 | FERRITE SHEET (AK) | 1 | |
| MP50 | 8930087220 | 3390 INSULATION SHEET | 1 | |
| MP51 | 8930085100 | SHIELD SPONGE (CW) | 1 | |
| MP52 | 8930075180 | FERRITE SHEET (X) | 1 | |
| MP53 | 8930087760 | FERRITE SHEET (AJ) | 1 | |
| MP54 | 8930088010 | 3390 LCD PLATE | 1 | |
| MP55 | 8930058500 | INSULATION SHEET (HB) | 1 | |
| MP56 | 8930086090 | DOUBLE SIDE TAPE (BP) | 1 | |
| MP57 | 8930086090 | DOUBLE SIDE TAPE (BP) | 1 | |
| MP59 | 8930088200 | 3390 EARTH PLATE | 1 | |
| MP60 | 8930088240 | INSULATION SHEET (NC) | 1 |
